Molicel INR-21700-P50B

⚡3.6V 60A　 🔋5000mAh

📌 P50B Overview

Molicel P50B is a 21700 cylindrical lithium-ion cell with 5000mAh typical capacity, 3.6V nominal voltage, and 60A maximum continuous discharge current, designed for ultra-high-power applications requiring high capacity, low impedance, and strong power-to-energy balance.

P50B supports discharge operation from -40℃ to +60℃ and charge operation from -20℃ to +60℃, making it suitable for eVTOL, high-performance EV platforms, racing power systems, high-performance electric motorcycles, industrial drones, data center BBU systems, and high-power tool battery pack projects.

✨ P50B Key Features

● 🔋 Format: 21700 cylindrical cell with 5000mAh / 18.0Wh typical capacity and 71g max weight

● ⚡ Positioning: ultra-high-power cell focused on high-rate output, high capacity, and low impedance, with 60A continuous discharge capability

● 📊 Energy Density: 265Wh/kg gravimetric energy density and 714Wh/L volumetric energy density, balancing high power output, capacity, and runtime performance

● 🔌 Charging: 5A standard charge current and 25A maximum charge current for high-rate fast charging and demanding power applications

● 🧩 Impedance: 6.5mΩ AC impedance and 12.8mΩ DC impedance, supporting stable high-current output and reduced heat under heavy-load conditions

● 🌡️ Temperature Range: charge temperature from -20℃ to +60℃ and discharge temperature from -40℃ to +60℃ for cold-weather, outdoor, and high-power applications

● 🔁 Cycle Performance: approximately 1400 cycles under specific +1C / -100W conditions, suitable for battery pack projects requiring high output, capacity retention, and long-term stability

🛠️ P50B Applications

🚁 eVTOL / Industrial Drones
Suitable for eVTOL, heavy-lift drones, agricultural drones, and industrial drone systems requiring high discharge capability and lightweight pack design.

🏎️ High-Performance EV / Racing Projects
Designed for high-performance EV platforms, racing power systems, and premium traction battery projects requiring strong output and energy density balance.

🛵 High-Performance Electric Motorcycles
Suitable for electric motorcycles, two-wheeled racing applications, and high-drain mobility systems requiring continuous power and fast charging.

📡 Data Center BBU
Suitable for data center backup power, battery modules, and BBU systems requiring stable output, high power delivery, and fast response.

🛠️ High-Power Tools
Ideal for industrial power tools, garden tools, and high-power equipment requiring stable continuous discharge capability.

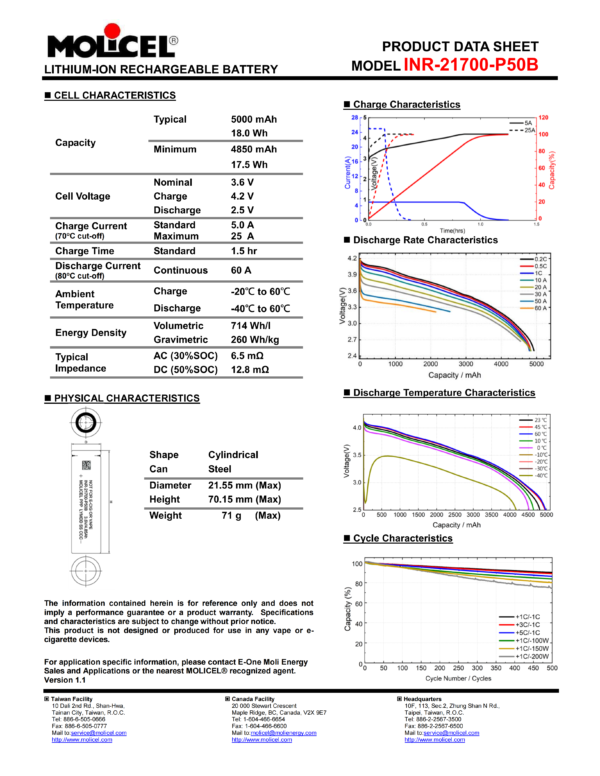

📊 P50B Technical Specifications
