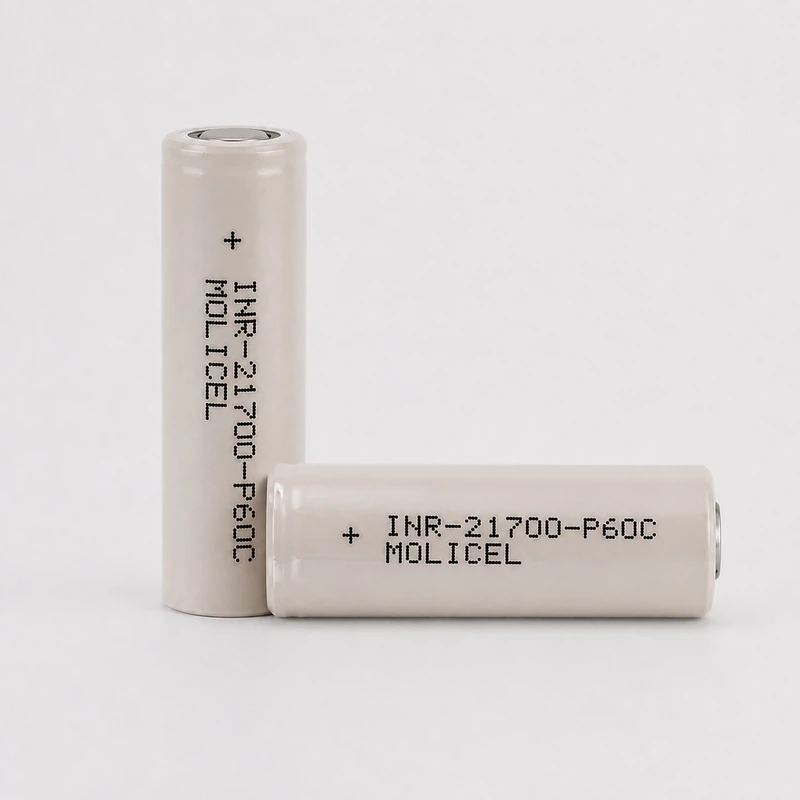

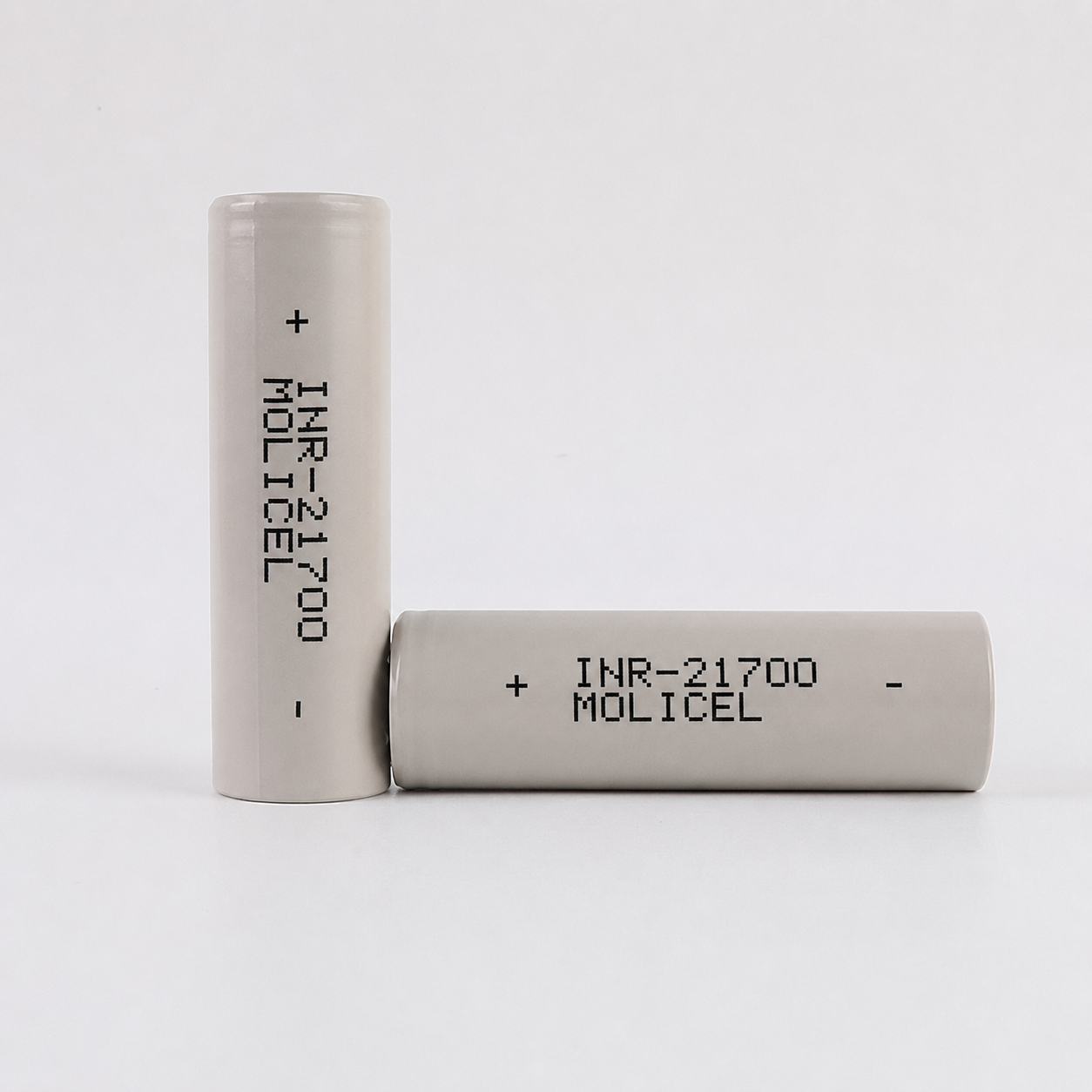

Product imageMolicel INR-21700-P60C is a 21700 rechargeable lithium-ion cell rated at 6000mAh and 3.6V. The manufacturer data sheet lists 60A standard discharge and 100A maximum discharge with an 80°C temperature cut-off and 3.0V voltage cut-off. Final selection must follow the applicable manufacturer data sheet and battery-pack operating conditions.
Molicel INR-21700-P60C is a 21700 rechargeable lithium-ion cell rated at 6000mAh and 3.6V. The manufacturer data sheet lists 60A standard discharge and 100A maximum discharge with an 80°C temperature cut-off and 3.0V voltage cut-off. Final selection must follow the applicable manufacturer data sheet and battery-pack operating conditions.
6000mAh, 5850mAh, 75g
60A, 100A, 80℃, 3.0V
6A standard · 30A maximum · 70°C cut-off
Approx. 284Wh/kg · 871Wh/L

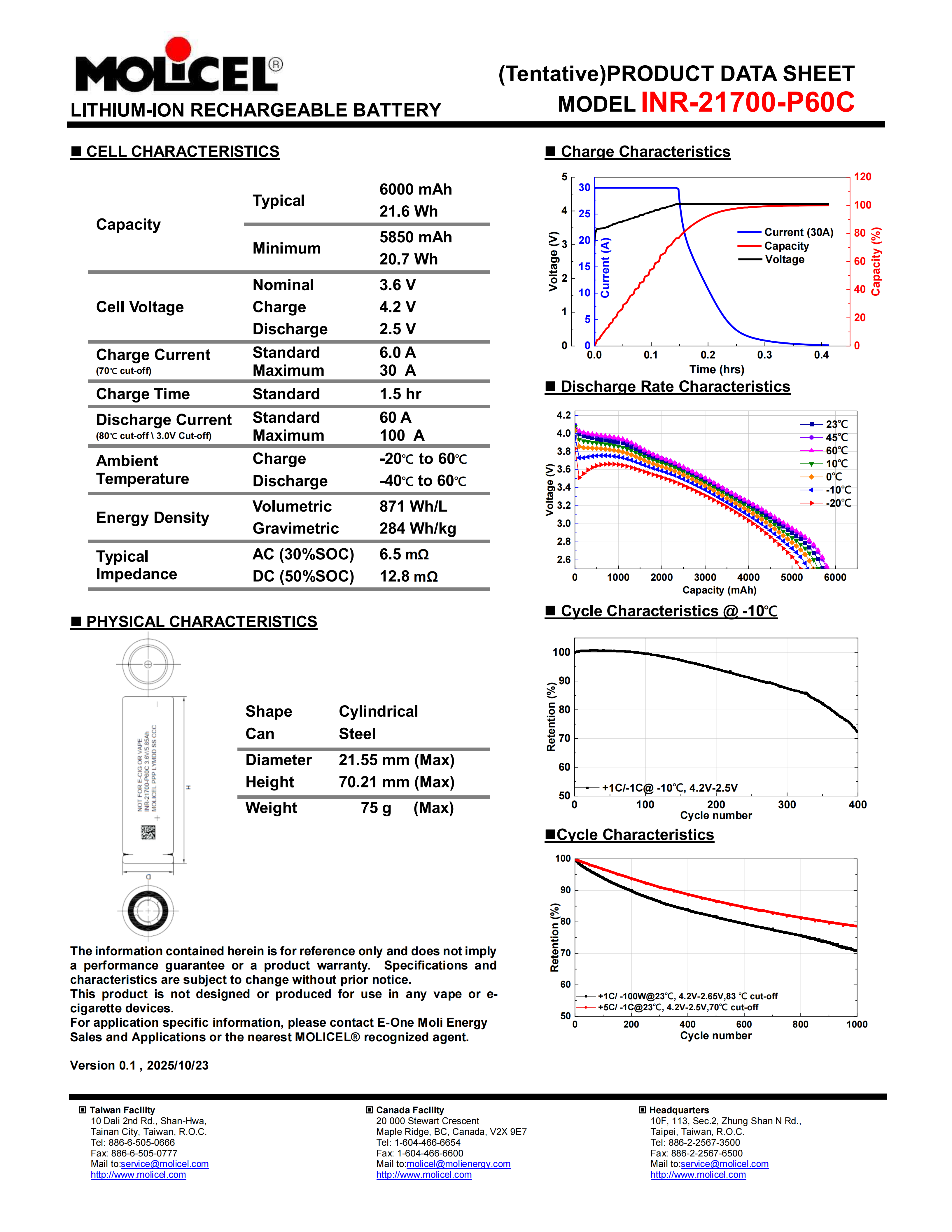

Review the manufacturer data and stated cut-off conditions below. Confirm the applicable data-sheet revision before design, validation or procurement.
Assess sustained and peak current, voltage drop, thermal rise, busbars and BMS thresholds at pack level.
Assess power-to-weight, duty cycle, thermal management, redundancy and program-specific validation requirements.
Confirm parallel count, BMS current limits, interconnect resistance, enclosure ventilation and operating temperature before pack design.
Please provide the full model, application, expected quantity, project stage and destination so we can confirm product and supply information.
